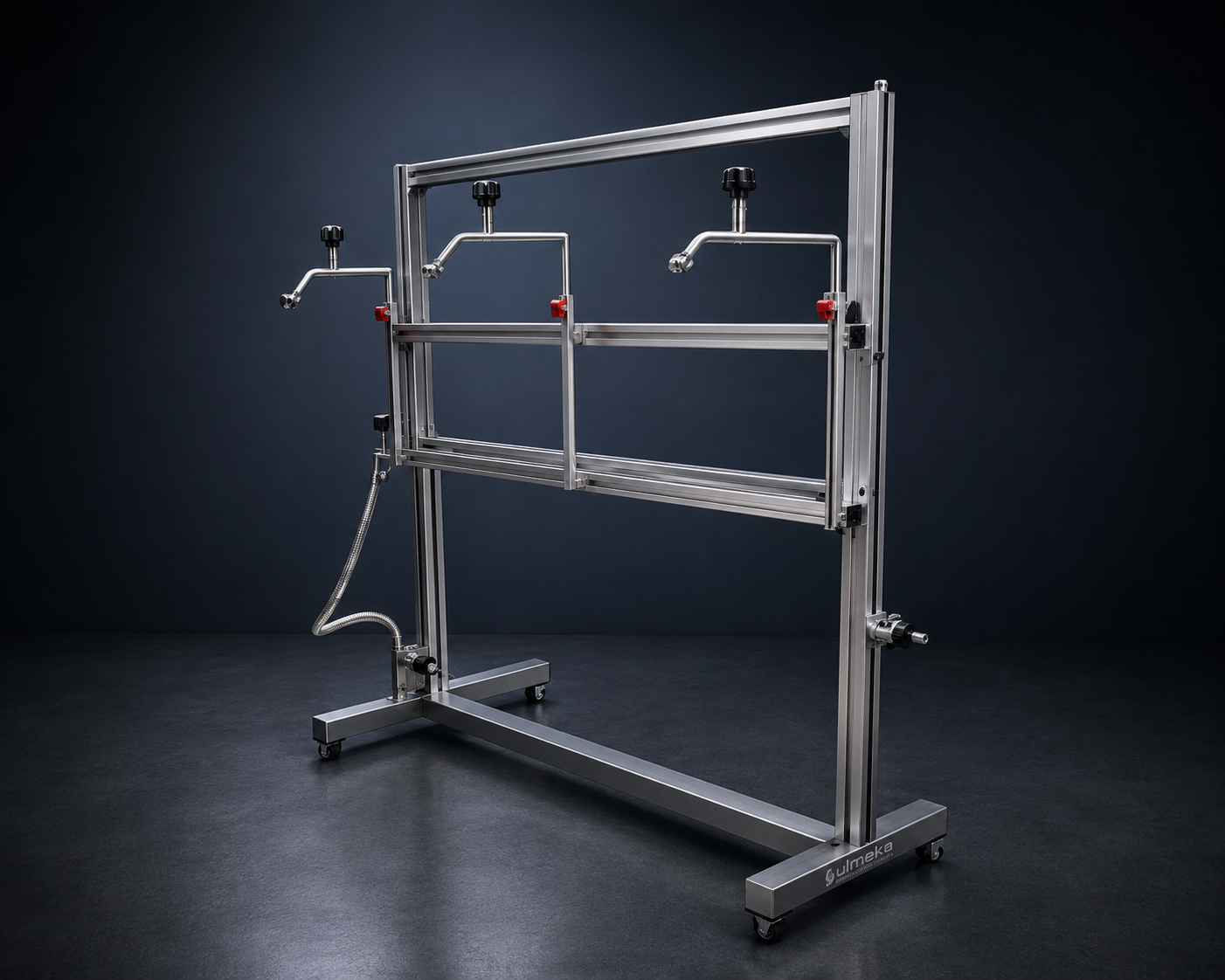

Water Spray Test Apparatus, IEC 62368-1 Annex Y.5.3.

The Water Spray Test Apparatus is a test device used to assess the water resistance of electrical equipment in compliance with the IEC 62368-1 Annex Y.5.3 standard. This test simulates the water splashes and sprays that products may encounter during operation or maintenance. The IEC 62368-1 standard uses this test to evaluate the safety and durability of devices, particularly to ensure user protection and resilience against environmental conditions.

Key Features

• Fully compliant with IEC 62368-1 Annex Y.5.3 standard design
• High-precision system capable of simulating water spray tests
• Adjustable water pressure, spray duration, and distance
• Equipped with high-quality water spray nozzle systems
• User-friendly touchscreen interface for easy control and monitoring
• Sturdy and durable construction for safe operation

Technical Specifications

• Water Pressure: Adjustable water pressure range
• Spray Duration: Fixed or increasing spray duration for the specified time
• Spray Distance: Adjustable distance option
• Test Conditions: Adjustable spray direction and angle
• Control System: PLC-based touchscreen interface
• Data Collection: Real-time data collection and analysis
• Safety Features: Emergency stop button and safety sensors

Applications

• Electrical and Electronics Industry: Testing the water resistance of electrical equipment
• Consumer Electronics: Testing the water splash resistance of household devices
• Automotive Industry: Testing the water resistance of in-vehicle electronics and components
• Aerospace and Defense Industry: Testing the water resistance of aircraft and military equipment components

Standards Containing the IEC 62368-1 Annex Y.5.3 Water Spray Test Apparatus

• IEC 62368-1: Safety requirements and test procedures for electrical equipment
• IEC 60529: Protection class requirements for electrical equipment (IP rating)
• ISO 20653: Waterproofing tests for automotive products against external factors
• MIL-STD-810G: Environmental testing standards for military equipment

Relevant Sections and Figures in Standards

• IEC 62368-1, Annex Y.5.3: Water spray test procedures and test applications
• IEC 60529, Section 14.2: IPX3 and IPX4 class water spray tests
• MIL-STD-810G, Section 506.5: Water spray test methods and requirements

Standard reference

IEC 62368-1 Annex Y.5.3 describes a water-spray test for outdoor equipment, applying water through a defined spray head over the specimen for a set period to verify resistance to rain/spray as part of the safety evaluation. The apparatus delivers the standard spray pattern, flow and duration.
