IEC 60884
Breaking Capacity & Normal Operation Test Device.
Make/break endurance of plugs & socket-outlets under load per IEC 60884-1

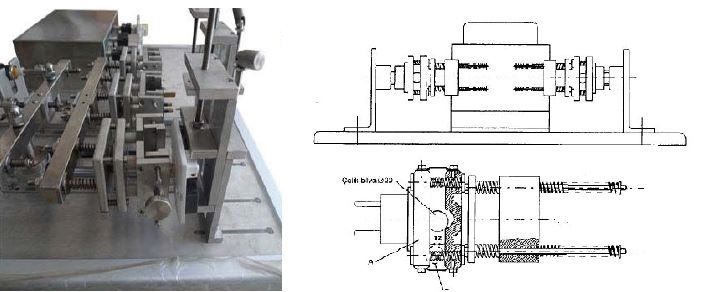

The Breaking Capacity & Normal Operation Test Device exercises plugs and socket-outlets through making and breaking cycles under load to verify, per IEC 60884-1, their electrical and mechanical endurance during normal service.
It provides 3 work stations driven pneumatically at 5–8 kg/cm², with a 7-inch touchscreen and test count and duration adjustable from 0 to 9999. ULMEKA designs and manufactures the device; stations and cycle settings are configured on request.
Standard reference
The breaking-capacity and normal-operation tests of IEC/EN 60884-1 make and break the rated current/voltage on the plug-socket combination for the number of cycles required by the standard, confirming that the accessory operates without excessive arcing, welding or deterioration.
Standards
& methods.
Datasheets.
ULMEKA engineers test systems
to specification.
If your requirement is outside this catalogue — custom chamber sizes, combined-standard integration, or tailored test profiles — talk to our engineering team.
