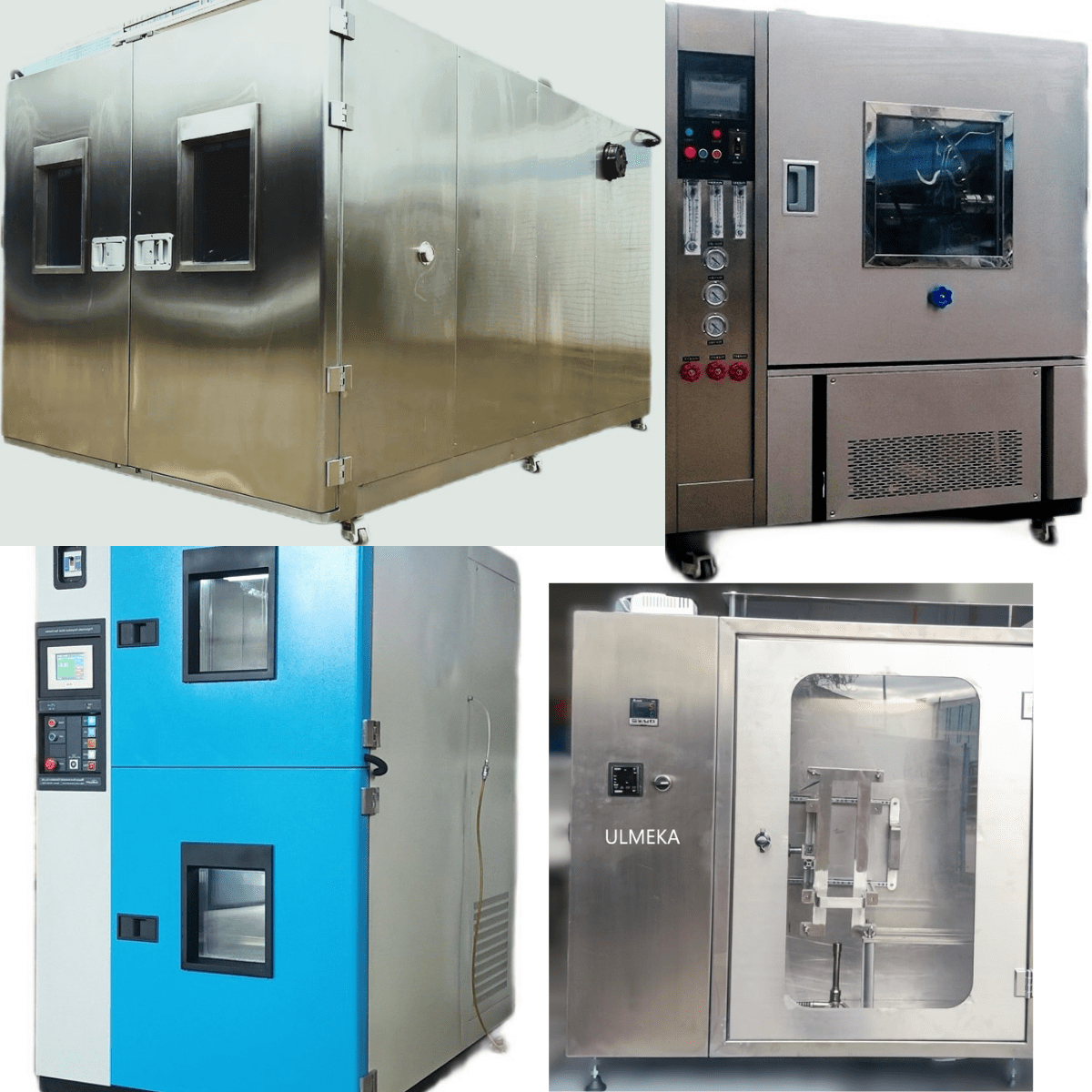

Cabinet-Type IP Test Devices and Their Types
Cabinet-type IP test devices are specialized equipment used to test the resistance of electronic and electrical products to dust, water, temperature, humidity, and other environmental factors. These test devices are test rooms or cabinets that measure the compliance of products with specific IP (Ingress Protection) ratings. Cabinet-type test devices are particularly used in various applications such as industrial products, automotive parts, mobile phones, and other portable devices.
Types and Features of Cabinet-Type IP Test Devices
Dust Test Cabinets (IP5X and IP6X):
- IP5X Test Cabinets: These cabinets provide protection for products against solid objects larger than 1 mm. In the IP5X test, devices are operated in a dusty environment for a specified period. It is expected that no dust enters the device.
- IP6X Test Cabinets: IP6X tests the complete protection of products against dust. This test checks whether the device operates without being affected by dust. The test is performed with great care to ensure no dust enters the device.
Water Splash and Immersion Test Cabinets:
- IPX3 and IPX4 Test Cabinets: These cabinets are used to test the resistance of products to water splashes. Water jets are sprayed at the device from specific angles, and the water resistance features of the device are checked.
- IPX7 and IPX8 Test Cabinets: These cabinets are used to test the device’s resistance to immersion in water. The product is submerged at a specific depth and duration. IPX8 indicates that the device is resistant to continuous submersion in water.
Rain and Water Splash Test Cabinets:
- Vertical Rain Test Cabinets: In these cabinets, water droplets are dropped vertically onto the products. This test measures the device’s protection against water droplets.
- Oscillating Tube Test Devices: These devices are used for IPX3 and IPX4 tests. Water jets are sprayed onto the product at specific angles and speeds.
Temperature and Humidity Test Cabinets:
- Temperature Test Cabinets: These cabinets expose devices to high temperatures. The device’s resistance to heat is tested.
- Humidity Test Cabinets: Products are placed in these cabinets to test their resistance to high humidity levels.
Vibration Test: This test measures the resistance of devices to vibrations. It is performed to ensure that the devices do not get damaged during transportation.
Shock Test: The device is exposed to a high-speed impact, and this test measures its resistance to shocks.
Temperature and Cold Tests: Devices are exposed to various temperature ranges to test their resistance to extreme hot and cold conditions.
Cabinet-type IP test devices are critical for measuring and improving the environmental durability of products. These test devices help enhance the reliability of industrial products, military equipment, automotive components, and portable devices. Military standards like MIL-STD-810 and other environmental tests are important for evaluating how products perform in harsh conditions. Various cabinet-type test devices available on the market are designed for different test types, each tailored for specific application areas.
As ULMEKA Mechatronics Ltd. Co., we design and manufacture all testing equipment according to the relevant standards and your needs. We also take into account the dimensions you specify and produce these testing devices in room or cabinet sizes according to your requirements. You can contact us for custom-designed or custom-sized test devices according to your needs.
