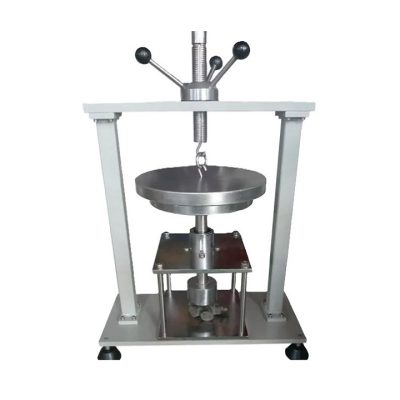

IEC 60601-1 Clause 9.8.3.3 Loading Test Machine

IEC 60601-1 Clause 9.8.3.3 Loading Test Machine

The IEC 60601-1 Clause 9.8.3.3 Loading Test is a test procedure applied to evaluate the mechanical durability and load-bearing capacity of medical electrical devices. This test measures whether devices can withstand specified weight and loading conditions, ensuring they meet safety and durability standards. The IEC 60601-1 Clause 9.8.3.3 Loading Test Machine ensures that tests are conducted with precision and repeatability, guaranteeing compliance with international safety requirements.

Key Features

• Loading Test: The machine tests mechanical durability by applying specified weight and loading parameters.
• Maximum Load Capacity: Ability to apply up to 1500N of force.
• Drop Height: Adjustable drop height up to 150 mm for standard-compliant testing.
• Adjustable Test Parameters: Parameters such as load amount, drop height, and test duration can be customized according to different product requirements.
• Compliance with Standards: Fully meets the requirements of IEC 60601-1 Clause 9.8.3.3.
• Robust and Durable Design: Manufactured from high-quality materials, ensuring long-lasting and reliable testing.
• User-Friendly Interface: Digital display and easy control panel allow for effortless adjustment of test parameters.
• Data Recording and Reporting: Test results are recorded and analyzed, integrating them into quality control processes.

Technical Specifications

• Maximum Load Capacity: 1500N
• Drop Height: Adjustable up to 150 mm
• Test Duration: Programmable according to user requirements
• Power Supply: Operates on electrical power (220V, 50Hz)
• Material Structure: High-strength steel and test components
• Mounting Structure: Available in fixed or portable installation options

Application Areas

• Medical Device Manufacturers: Verifies the mechanical durability of products to ensure compliance with international safety standards.
• Quality Control and Testing Laboratories: Used to ensure that devices meet load-bearing durability requirements.
• R&D and Product Development: Ideal for testing the mechanical durability of next-generation medical devices.
• Certification Testing Laboratories: Used in compliance testing with IEC 60601-1 standards.

IEC 60601-1 Standard Tests and Sections

• Clause 9.8.3.3 Loading Test: Evaluates whether devices can continue to operate safely under specified load conditions.
• Mechanical Durability: Tests the long-term load-bearing capacity of devices.
• Drop Load Test: Analyzes whether devices maintain structural integrity under specific load and drop height conditions.

IEC 60601-1 Standard Sections

• IEC 60601-1: The primary standard defining essential safety requirements and performance criteria for medical electrical devices. This standard includes requirements for mechanical load testing, electrical safety, and overall durability.
• IEC 60601-2: Includes additional safety requirements and test procedures for specific types of medical devices.

Why Choose the IEC 60601-1 Clause 9.8.3.3 Loading Test Machine?

The IEC 60601-1 Clause 9.8.3.3 Loading Test Machine is a critical test device for verifying the safety and mechanical durability of medical electrical devices. With adjustable load capacity, drop height, and test duration parameters, it provides a flexible testing solution, making it an ideal choice for manufacturers, quality control laboratories, and R&D centers.

For more information about the IEC 60601-1 Clause 9.8.3.3 Loading Test Machine or to place an order for a device tailored to your specific testing requirements, please contact us.
