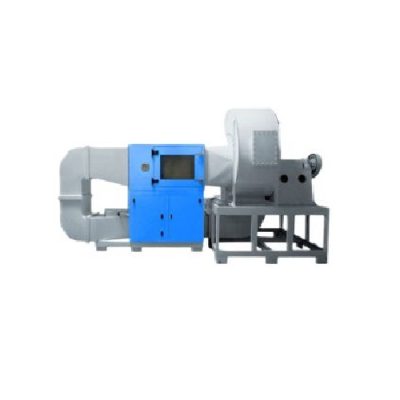

DO-160 Rain (Section 10) Test Device
What is the DO-160 Rain Test?
The DO-160 standard was developed to test the environmental durability of electronic equipment used in the aerospace and aviation industries. Section 10 of this standard covers the Rain Test, which evaluates the equipment’s resistance to rain and water spray. This test is applied to analyze the effect of rain and water contact on device performance during aircraft operations.
Rain Test in the DO-160 Standard
The Rain Test defined under DO-160 Section 10 is also related to the following standards:
- IEC 60529 (IP Codes – Water Resistance Tests)
- MIL-STD-810H Method 506.6 (Rain Tests)
- RTCA/DO-160G Section 10.0 (Rain and Water Resistance Test)
These tests are applied to determine whether devices can maintain their mechanical integrity and functionality against water exposure.
Test Purpose
The Rain Test is conducted to measure the operability of aerospace electronics under rain, water spray, and humid conditions. It is applied to assess potential risks such as water leakage, insulation losses, and electrical failures.
How is the DO-160 Rain Test Conducted?
The Rain Test is carried out in the following stages:
- Preparation: The device to be tested is placed in a rain test chamber or water spray simulation system.
- Water Exposure: The device is exposed to water with a specified pressure and flow rate.
- Test Duration: The rain exposure time can vary between 30 minutes and 2 hours.
- Rain Angle and Intensity: The water spray angle and intensity are adjusted to simulate aircraft operations.
- Performance Evaluation: After the test, the device’s structural and functional integrity is checked.
Devices Used for the Rain Test
The test devices used for the DO-160 Rain Tests consist of specially designed water spray systems and rain test chambers.
- Rain Test Chambers
- Designed for testing large electronic components.
- Can simulate various rain conditions (from light rain to severe storms).
- Creates realistic environmental conditions with adjustable temperature and humidity control.
- Water Spray Test Systems
- Can conduct tests at different water pressure levels.
- Specialized spray nozzles direct water onto the device at specific angles.
- A rotation mechanism allows the device to be exposed to water at different angles.
Applications of the Test
The DO-160 Rain Test is applied to the following equipment:
- Aerospace electronics (avionic systems)
- Internal and external sensors
- In-flight control and monitoring systems
- Radar and navigation systems
Results of the DO-160 Rain Test
The test result evaluates the device’s mechanical integrity and operational reliability. Gasket sealing, component strength, and electrical failures are analyzed. Successfully passing the test indicates that the device can safely operate when exposed to water.
Conclusion
The Rain Tests conducted under DO-160 Section 10 are critical for ensuring the safety of aerospace electronics and other essential equipment. This test guarantees that devices will be resistant to rain and water conditions they may encounter during flight.
You can contact us for more detailed information on the DO-160 Rain (Section 10) Test Device and to place an order in custom sizes according to your needs.
